Circular Connectors

Series 03 | Circular connectors with threaded joint M16 acc. to IEC 61076-2-106, IP40/IP68

Wide range of parts, 3–14 poles, with and without 360° shielding. Compatible mating acc. to IEC 61076-2-106 and IEC 60130-9. Easy mounting with solder or crimp technology. Protection degrees IP40 and IP68. Includes versions for 4G/5G mobile radio networks acc. to AISG. SWUM™ versions even sealed when unmated. For signal and load currents up to 5 A.

No product found with this configuration.

Series 03 | Circular connectors acc. to AISG specification, IP68

Wide range of parts for 4G/5G mobile radio networks, 5, 6 and 8 poles, including parts acc. to AISG specification C485. With 360° shielding and threaded joint M16 acc. to IEC 61076-2-106. Easy assembly with solder or crimp technology. Protection degree IP68. SWUM™ versions even sealed when unmated. For signal and load currents up to 5 A. This is an AISG extract of series 03.

No product found with this configuration.

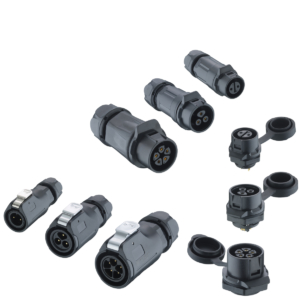

Series 02 | Quicklock circular connectors, IP67

Circular power connectors with Quicklock mechanism, 2–12 poles, four design sizes. Protection degree IP67. For signal and load currents up to 50 A.

As of 02/2021, the Quicklock power connectors will be
available from our sister company, Lutronic.

No product found with this configuration.

Series 01 | DIN circular connectors

Connectors according to DIN 45321, mating compatible to IEC 61076-2-106 and IEC 60130-9. 3-8 poles. For signal and load currents up to 4 A.

Series 01 | Miniature circular connectors

Miniature circular connectors (also referred to as Mini DIN). For signal and low loard currents up to 1 A.

Series 16 | Power supply connectors

Power supply connectors e.g. according to DIN 45323 and JEITA RC-5320A. Wide range of parts, 1.7-–7.0 mm diameter. For low load currents up to 3 A at 34 V DC, individual types up to 10 A.

No product found with this configuration.

Series ... | More Circular Connector Series

An additional range of circular connectors is offered by our sister company, Lutronic.

No product found with this configuration.
