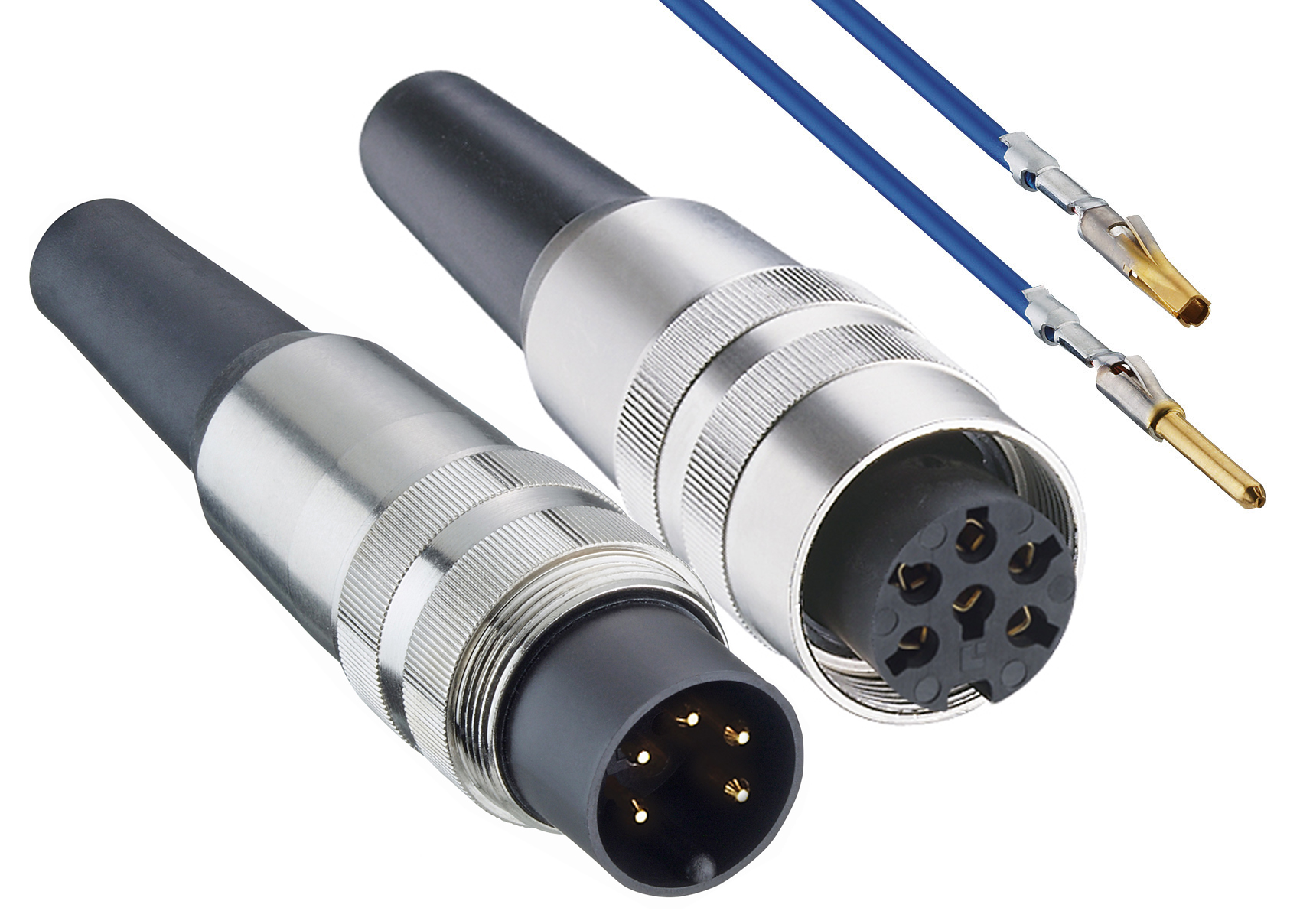

Lumberg Expands Its M16 Portfolio: New SV and KV Circular Connectors with Crimp Technology

Schalksmühle, May 2025. – The Lumberg Group is expanding its range of circular connectors with new versions of the SV and KV series featuring crimp technology. The proven M16 connectors with screw-locking mechanisms in accordance with IEC 61076-2-106 and protection rating IP40 are now available with crimp contacts. This enables efficient processing, inclu-ding automated assembly for large-scale industrial applications.

Maximum Flexibility with Crimp Technology

The crimp technology used in the SV and KV connectors ensures a secure, gas-tight connection with low contact resistance – ideal for demanding applications in industrial automation, mechanical engineering, measurement and control systems, and other technical fields.

Key Features of the New Crimp Variants:
SV Series: Straight connectors with screw-locking for cable diameters up to 6 or 8 mm (SV … C); the WSV … C type designates the angled version.
KV Series: Straight socket with screw-locking for cable diameters up to 6 or 8 mm (KV … C); the WKV … C type designates the angled version.
Versatility: Eight standard contact arrangements/mating faces in accordance with IEC 61076-2-106 available
Robust Materials: Housings made of nickel-plated brass; contact carriers made of UL94 V-0 rated plastic
Mechanical Stability: Strain relief boot, integrated strain relief, and secure cable guidance
Electrical Specifications: Rated current of 5 A at 40 °C ambient temperature; rated voltage up to 300 V depending on the number of poles
Crimp Contacts: Pin contact 0364 and bush contact 0369, both gold-plated

With the launch of the crimp variants in the SV and KV connector series, Lumberg adds a future-proof, easy-to-install, and high-performance connection solution to its circular connector portfolio. The combination of SV plugs and KV sockets, along with a wide range of panel-mount options, provides a secure, durable connection ideal for a variety of applications – from industrial environments to electronic systems. Both series stand out with their flexibility, premium materials, and excellent performance.

More Information: Series 03
